Now that I got rum-pooh out of my system…  on to a slightly more technical post.

Not sure if anyone of you caught the recent announcements about the new eAPI from HP’s Intelligent Management center.  In a nutshell, this is a RESTful API which allows programatic access to almost all ( maybe all?) of the IMC functions through an HTTP(s) interface.

Now I’m not a programer at all, but I like to think I have a working knowledge of programing logic. At least enough to give a half-decent programmer enough information to get the job done.

So when I had a co-worker present me with a problem earlier this week, I thought “Hey, I wonder what this new eAPI can really do?”.  I did mention I’m not a programer right?  After this little exercise, I’m thinking I might just have to pick up some scripting skills this year. :)

So what’s the value of the eAPI? It functionally allows IMC to act as the progamatic upper layer APIs and abstracts the actual management task from the underlying hardware devices.

In less complicated terms; it means that a program can say  “Hey, IMC change the VLAN on this port” and IMC, assuming IMC actually supports that particular device, it will change the VLAN on that port.


Yup. That’s right.  IMC doesn’t care if that device is a HP 5500EI ( comware ), a HP 3800 ( procurve), or even a Cisco Catalyst 3560.  From the perspective of the developer on the other side. It’s as simple as “Hey, IMC change the VLAN on this port”.

So the actual challenge I was given was the following.

” A customer wants to take a bar-code reader, scan in the MAC address of a device, plug it into the network, push a button and then have IMC automatically put it in the right VLAN”.

Now first I had to break that down into the various components.

1) Bar-code reader scans the MAC address

2) Program has to capture the MAC address for use in the %mac-address% variable in the script.

3) Find the device in the network

Hmmm… this could be more difficult than I thought.

So, I need to mock this up, so I break out to a windows CMD prompt.

Ping a known address ( my Synology NAS — LOVE THIS PRODUCT ).  And then put do a arp -a  to get the following output           00-11-32-10-03-8b

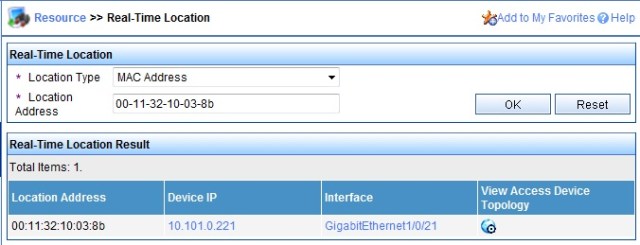

Now if I was using the IMC web-interface, I would just use the   Resource-Terminal Access-Real-Time Location feature which will, you guessed it, locate a host in real-time using the mac-address or the IP address.

Hmmm… that kinda sucks for output for the script to leverage.  So I went and looked at the eAPI documentation and came out with this little baby

The eAPI call is the following  ( if you wanted to search for an IP address you would use type=2 instead of 1 )

( Don’t click this, it won’t take you anywhere)

The return is the following

<?xml version=”1.0″ encoding=”UTF-8″ standalone=”yes” ?>








Yup. Good old XML. Easy to apply transforms or grab variables.  Programmers love this stuff.

4) So now I have the device IP (switch) that this is plugged into, and the ifDesc which is the actual interface it’s located on. So now I have to figure out how to apply the VLAN to this interface. So I break out the trusty eAPI documentation and start looking for the VLAN section.

Hmmm… I have the devIP and the ifDesc.. not the devID and the ifIndex

note to self: Feedback to the developers to have the first command return the devID and the ifIndex variables

So now I have to find the devID and the ifIndex for that devIP and intDesc

5a) Now if I was on the trusty IMC web interface, I would go to the device resource page… hmmm… that doesn’t appear to be there. I guess instead, let’s go to the eAPI documentation and look for something that looks like a dev query.

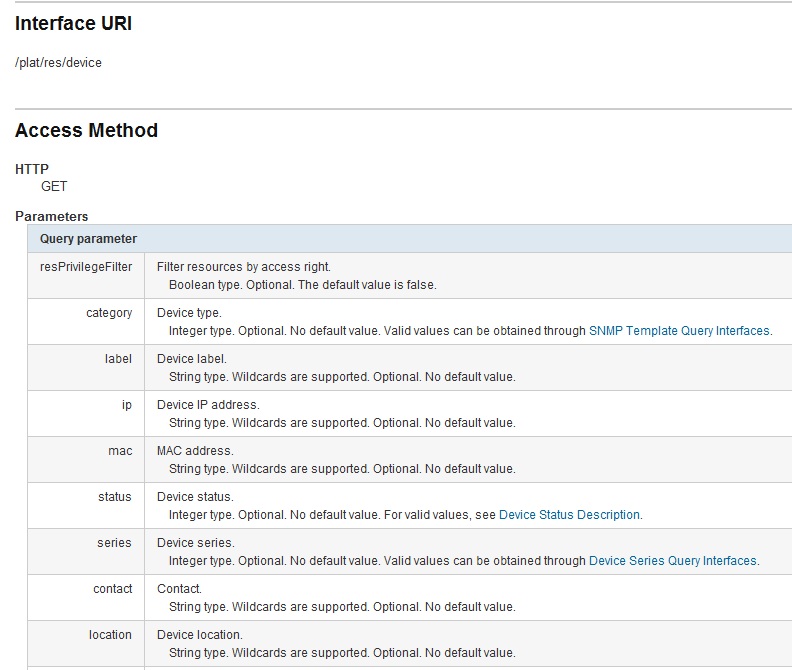

Yup. It’s actually called devquery. And it looks like I can filter based on the device IP.

Cool. So now I can search for the specific device IP and hope we get the devID variable back that we need for the VLAN call.

The return is the following

  <?xml version=”1.0″ encoding=”UTF-8″ standalone=”yes” ?>



<id>15</id>     ———————————————- This is the device ID that we need to reference later







<contact>HP Montreal</contact>

<location>Marlborough, MA 01752 USA</location>












<typeName>3Com S4800G PWR 24-Port</typeName>


<link op=”GET” rel=”self” href=”” />



There it is.  DevID is  “15”.

5b) So now we need to figure out that ifIndex value associated with <ifDesc>GigabitEthernet1/0/21</ifDesc> that we pulled above.

If I was in the webinterface, I would simply go to the device ( ), click on the interface list, click on interface Gig 1/0/21 and I would pull out the ifIndex from the interface…

But again, those programmers don’t want HTML, they want an easy XML output that they can play with. So let’s find that…

This returns a whole bunch of data for all the interfaces on the switch, but I’m sure that any decent programmer can write a regex expression to only return the one who’s ifDesc value is for Gig 1/0/21, right?


<ifIndex>21</ifIndex>      ——————————————–In this case, the ifindex value is the same as the port number. That’s not always going to be true. This is the other variable for the set VLAN












<ifAlias>GigabitEthernet1/0/15 Interface</ifAlias>



<lastChange>4 day(s) 21 hour(s) 39 minute(s) 50 second(s) 990 millisecond(s)</lastChange>




So now we have the DevID     15     and the ifIndex    for the actual interface where that MAC-address is located.

So let’s go back to the set that VLAN

Let’s assume that you wanted to put the device in VLAN 20,   you would run the following

That’s about it for the task. Now any decent programmer is going to have to put in some checking and error handling, for instance, you might want to check whether or not that VLAN actually EXISTS on the switch. ( Can’t put a VLAN on a port if the VLAN doesn’t exist on the switch, right? ) or maybe return an error if the MAC-address is actually seen on two interfaces, but in a nutshell that’s it.

note: I would also suggest that the dev actually bounce the port to make sure that the device hasnt’ gotten locked in with a DHCP address on the wrong subnet.

/plat/res/device/{deviceId}/interface/{ifIndex}/down   to down the interface

so for use that would be  /plat/res/device/15/interface/21/down

and then immediately do a


or again for us  /plat/res/device/15/21/up

Now whether the actual switch commands are “switchport acces vlan 20 ”  or ” port access vlan 20 ” or some other variation on a theme doesn’t actually matter to your devOps team. They just write the code to follow the steps and IMC and the eAPI will take care of the rest.

Pretty cool stuff. :)


, , , , ,
